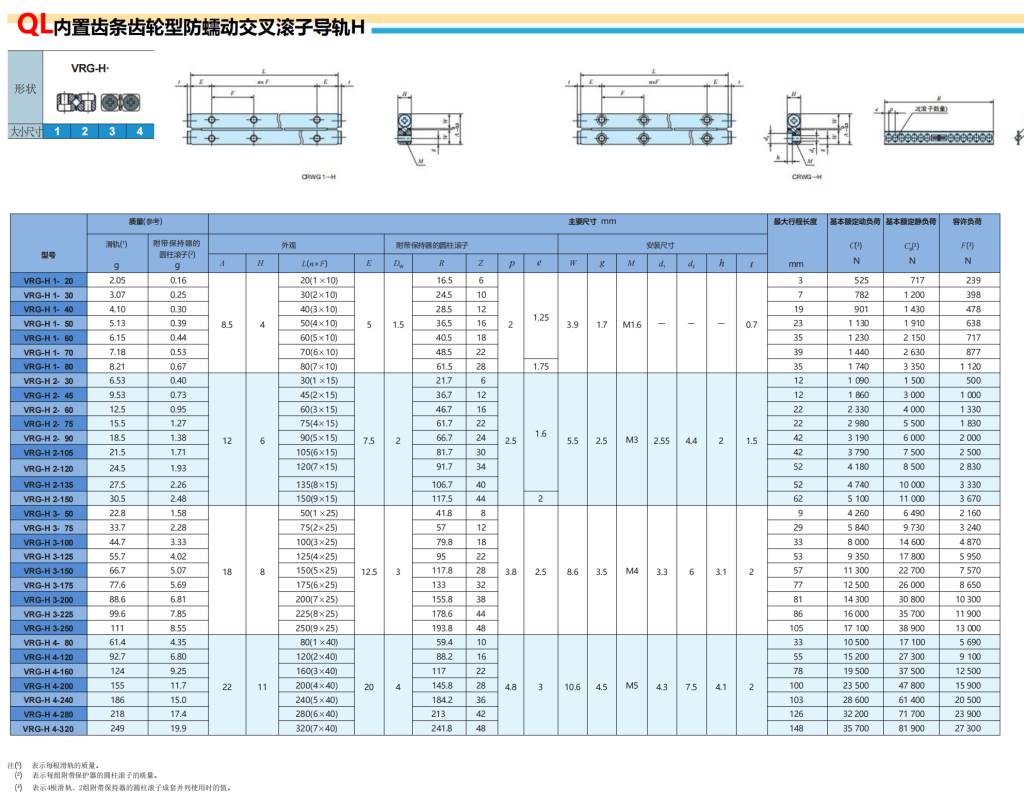

- Model
- Mass-Slide rail (g)
- Mass - Cylindrical rollers with cage(g)
- A(mm)
- H(mm)
- L(n×F)
- E(mm)
- Dw(mm)
- R(mm)
- Z
- p(mm)
- e(mm)
- W(mm)
- g(mm)
- M
- d1(mm)
- d2(mm)
- h(mm)
- t(mm)
- Maximum Stroke Length(mm)
- Basic Dynamic Load Rating C(N)
- Basic Static Load Rating C0(N)
- Allowable Load F(N)
VRG-H 1- 20
2.05
0.16
8.5
4
20(1x10)
5
1.5
16.5
6
2
1.25
3.9
1.7
M1.6
/
/
/
0.7
3
525
717
239
VRG-H 1- 30
3.07
0.25
8.5
4
30(2x10)
5
1.5
24.5
10
2
1.25
3.9
1.7
M1.6
/
/
/
0.7
7
782
1200
398
VRG-H 1- 40
4.1
0.3
8.5
4
40(3x10)
5
1.5
28.5
12
2
1.25
3.9
1.7
M1.6
/
/
/
0.7
19
901
1430
478
VRG-H 1- 50
5.13
0.39
8.5
4
50(4x10)
5
1.5
36.5
16
2
1.25
3.9
1.7
M1.6
/
/
/
0.7
23
1130
1910
638
VRG-H 1- 60
6.15
0.44
8.5
4
60(5x10)
5
1.5
40.5
18
2
1.25
3.9
1.7
M1.6
/
/
/
0.7
35
1230
2150
717
VRG-H 1- 70
7.18
0.53
8.5
4
70(6x10)
5
1.5
48.5
22
2
1.25
3.9
1.7
M1.6
/
/
/
0.7
39
1440
2630
877
VRG-H 1- 80
8.21
0.67
8.5
4
80(7x10)
5
1.5
61.5
28
2
1.75
3.9
1.7
M1.6
/
/
/
0.7
35
1740
3350
1120
VRG-H 2- 30
6.53
0.4
12
6
30(1x15)
7.5
2
21.7
6
2.5
1.6
5.5
2.5
M3
2.55
4.4
2
1.5
12
1090
1500
500
VRG-H 2- 45
9.53
0.73
12
6
45(2x15)
7.5
2
36.7
12
2.5
1.6
5.5
2.5
M3
2.55
4.4
2
1.5
12
1860
3000
1000
VRG-H 2- 60
12.5
0.95
12
6
60(3x15)
7.5
2
46.7
16
2.5
1.6
5.5
2.5
M3
2.55
4.4
2
1.5
22
2330
4000
1330
VRG-H 2- 75
15.5
1.27
12
6
75(4x15)
7.5
2
61.7
22
2.5
1.6
5.5
2.5
M3
2.55
4.4
2
1.5
22
2980
5500
1830
VRG-H 2- 90
18.5
1.38
12
6
90(5x15)
7.5
2
66.7
24
2.5
1.6
5.5
2.5
M3
2.55
4.4
2
1.5
42
3190
6000
2000
VRG-H 2-105
21.5
1.71
12
6
105(6x15)
7.5
2
81.7
30
2.5
1.6
5.5
2.5
M3
2.55
4.4
2
1.5
42
3790
7500
2500
VRG-H 2-120
24.5
1.93
12
6
120(7x15)
7.5
2
91.7
34
2.5
1.6
5.5
2.5
M3
2.55
4.4
2
1.5
52
4180
8500
2830
VRG-H 2-135
27.5
2.26
12
6
135(8x15)
7.5
2
106.7
40
2.5
1.6
5.5
2.5
M3
2.55
4.4
2
1.5
52
4740
10000
3330
VRG-H 2-150
30.5
2.48
12
6
150(9x15)
7.5
2
117.5
44
2.5
2
5.5
2.5
M3
2.55
4.4
2
1.5
62
5100
11000
3670
VRG-H 3- 50
22.8
1.58
18
8
50(1x25)
12.5
3
41.8
8
3.8
2.5
8.6
3.5
M4
3.3
6
3.1
2
9
4260
6490
2160
VRG-H 3- 75
33.7
2.28
18
8
75(2x25)
12.5
3
57
12
3.8
2.5
8.6
3.5
M4
3.3
6
3.1
2
29
5840
9730
3240
VRG-H 3-100
44.7
3.33
18
8
100(3x25)
12.5
3
79.8
18
3.8
2.5
8.6
3.5
M4
3.3
6
3.1
2
33
8000
14600
4870
VRG-H 3-125
55.7
4.02
18
8
125(4x25)
12.5
3
95
22
3.8
2.5
8.6
3.5
M4
3.3
6
3.1
2
53
9350
17800
5950
VRG-H 3-150
66.7
5.07
18
8
150(5x25)
12.5
3
117.8
28
3.8
2.5
8.6
3.5
M4
3.3
6
3.1
2
57
11300
22700
7570
VRG-H 3-175
77.6
5.69
18
8
175(6x25)
12.5
3
133
32
3.8
2.5
8.6
3.5
M4
3.3
6
3.1
2
77
12500
26000
8650
VRG-H 3-200
88.6
6.81
18
8
200(7x25)
12.5
3
155.8
38
3.8
2.5
8.6
3.5
M4
3.3
6
3.1
2
81
14300
30800
10300
VRG-H 3-225
99.6
7.85
18
8
225(8x25)
12.5
3
178.6
44
3.8
2.5
8.6
3.5
M4
3.3
6
3.1
2
86
16000
35700
11900
VRG-H 3-250
111
8.55
18
8
250(9x25)
12.5
3
193.8
48
3.8
2.5
8.6
3.5
M4
3.3
6
3.1
2
105
17100
38900
13000
VRG-H 4- 80
61.4
4.35
22
11
80(1x40)
20
4
59.4
10
4.8
3
10.6
4.5
M5
4.3
7.5
4.1
2
33
10500
17100
5690
VRG-H 4-120
92.7
6.8
22
11
120(2x40)
20
4
88.2
16
4.8
3
10.6
4.5
M5
4.3
7.5
4.1
2
55
15200
27300
9100
VRG-H 4-160
124
9.25
22
11
160(3x40)
20
4
117
22
4.8
3
10.6
4.5
M5
4.3
7.5
4.1
2
78
19500
37500
12500
VRG-H 4-200
155
11.7
22
11
200(4x40)
20
4
145.8
28
4.8
3
10.6
4.5
M5
4.3
7.5
4.1
2
100
23500
47800
15900
VRG-H 4-240
186
15
22
11
240(5x40)
20
4
184.2
36
4.8
3
10.6
4.5
M5
4.3
7.5
4.1
2
103
28600
61400
20500
VRG-H 4-280
218
17.4
22
11
280(6x40)
20
4
213
42
4.8
3
10.6
4.5
M5
4.3
7.5
4.1
2
126
32200
71700
23900
VRG-H 4-320
249
19.9
22
11
320(7x40)
20
4
241.8
48
4.8
3
10.6
4.5
M5
4.3
7.5
4.1
2
148
35700
81900
27300
